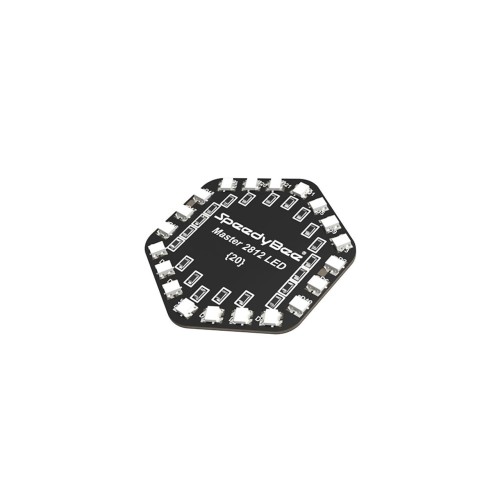

SpeedyBee Master 5 V1 V2 Programmable 2812 Cellular LED
Dostępność:
na wyczerpaniu
Wysyłka w:
24 godziny
Ocena:
0
0
Producent:
Kod produktu:
SB-M5-LEDB
Opis
SpeedyBee Master 5 V1 V2
LampBeadsElectricalCharacteristics
AbsoluteMaximumRatings（Temperature=25℃）
| Specifications | Symbol | Range | Unit |
| Logic power voltag | VDD | 3.0~7.5 | V |
| R/G/B outport withstand voltag | Vds | 9 | V |
| Logic input voltage | VI1 | 0.5~5.5 | V |
| R/G/B output voltage | Iout | 12 | mA |
| Working temperature | Topr | -40~+85 | ℃ |
| Storage temperature | Tstg | -50~+150 | ℃ |
| ESD withstand voltage | Vesd | 5k | V |
*Notice:Pulsewidth≤0.1ms,dutyratio≤1/10
ElectricalOpticalCharacteristics（Temperature=25℃）
| Specifications | Symbol | Min | Typ | Max | Unit |
| Chip working voltage | VDD | - | 5 | 7.5 | V |
| R/G/B outport withstand voltage | Vds | - | - | 9 | V |
| R/G/B output drive current | Iou | - | 12 | - | V |
| High level input voltage | VIH | 0.7Vdd | - | - | mA |
| Low level input voltage | VIL | - | - | 0.3Vdd | V |
| PWM frequenc | FPWM | - | 4 | - | KHZ |
| Static power consumption | ldd | - | 0.3 | - | mA |
